1. Wen Me251r Offset Marking Gauge And Layout Tool
The WEN ME251R 10-Inch Aluminum Offset Marking Gauge is perfect for woodworking enthusiasts, professional carpenters, and DIYers who require precise and reliable measuring and marking tools. If you often work on projects that demand accuracy in layout and marking, this tool is designed to enhance your craftsmanship and efficiency.
Pros:
- Constructed from durable aluminum for long-lasting use
- Features a clear, laser-etched scale for precise measurements
- Offset design allows marking close to edges and corners
- Easy-to-read measurements improve accuracy and speed
- Lightweight and compact, ideal for portability
Cons:
- May require some initial adjustment to get used to the offset feature
- Limited to 10-inch marking range, which might be short for larger projects
The WEN ME251R Marking Gauge boasts a high-quality aluminum construction that ensures durability while keeping the tool lightweight. Its laser-etched scale offers clear and precise measurement markings, which significantly reduce errors during layout work. This makes it especially useful for detailed woodworking or metalworking tasks where exact measurements are critical.
Additionally, the offset design allows users to mark lines very close to edges or corners, a feature that traditional marking gauges often lack. This enhances versatility and precision, allowing for cleaner, more professional results. Whether you’re laying out dovetail joints or marking mortise and tenon cuts, the WEN ME251R provides the accuracy and ease of use needed to complete your projects successfully.
To buy this product, click here.
2. General Tools Angle Protractor
The General Tools Angle Protractor #17 Stainless Steel Square Head is ideal for carpenters and woodworking hobbyists who require precise and durable measuring tools. If you are someone who values accuracy in angle measurement and needs a reliable instrument for your projects, this tool is designed specifically for you. Its robust stainless steel construction makes it suitable for both professional and DIY woodworking tasks.
Pros:
- Durable stainless steel material ensures long-lasting use.
- Precise angle measurements for accurate woodworking and carpentry.
- Lightweight and portable with a weight of only 0.14 pounds.
- Compact dimensions make it easy to handle and store.
- Versatile square head design suitable for various measuring needs.
Cons:
- May require careful handling to avoid scratches on the stainless steel surface.
- Not suitable for measuring angles beyond typical woodworking ranges.
The General Tools Angle Protractor #17 features a stainless steel body measuring 12.5 inches in length, 3.88 inches in width, and 1.63 inches in height, making it a compact yet highly functional measuring tool. Its square head design allows users to measure and mark precise angles with ease, which is essential for detailed carpentry work. The lightweight construction ensures that it can be comfortably used for extended periods without causing fatigue.
Thanks to its robust build and accurate scale, this tool benefits users by enhancing the precision of their projects, reducing measurement errors, and improving overall craftsmanship. Whether you are cutting wood for furniture or creating detailed woodworking designs, this protractor helps ensure your angles are exact, leading to professional-quality results every time.
To buy this product, click here.

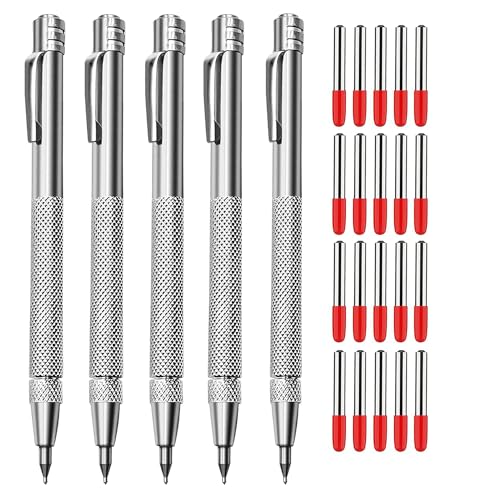

3. Ofasixx Tungsten Carbide Metal Scribe Scriber Tool & Engraving Pen Set
The Ofasixx 5+20 Tungsten Carbide Metal Scribe Scriber Tool & Engraving Pen Set is ideal for professionals and hobbyists who require precise and durable marking tools. Whether you are working with metal, leather, glass, or wood, this set is perfect for craftsmen, engineers, and DIY enthusiasts seeking accuracy and efficiency in their projects.
Pros:
- No need for sharpening, ensuring continuous use without interruption.
- Constructed with tungsten carbide for enhanced durability and long-lasting sharpness.
- Magnetic design for easy handling and storage.
- Suitable for various materials including metal, leather, glass, and wood.
- Compact and lightweight with dimensions of 5.7 inches length and weighing only 0.14 pounds.
Cons:
- The set may not include replacement tips, limiting long-term usability if tips wear out.
- Silver color might show scratches or wear over extended use.
The Ofasixx Tungsten Carbide Scribe Tool features a robust and precise tip made from high-quality tungsten carbide, which does not require sharpening. This ensures that users can maintain accuracy and speed without the hassle of constant maintenance. Its magnetic design enhances convenience, allowing users to attach the tool securely to metal surfaces or keep it organized in their toolkit.
Designed with versatility in mind, this engraving pen set works seamlessly on multiple surfaces such as metal, leather, glass, and wood. This adaptability makes it a valuable addition to any workshop or crafting space. The lightweight and compact dimensions allow for comfortable handling and easy portability, making detailed layouts and markings effortless wherever you go.
To buy this product, click here.
4. Angle Finder Ii
The Angle Finder II is ideal for professionals and DIY enthusiasts who require precise angle measurements, especially in tube bending or sheet metal bending. If you work in metal fabrication, construction, or any field where accurate angle layout is crucial, this tool is designed to meet your needs with ease and accuracy.
Pros:
- Made from durable anodized aluminum for long-lasting use.
- Measures both inside and outside angles from 0 to 180 degrees.
- Features a long 20-inch arm for extended reach and better leverage.
- Lightweight design at only 0.8 pounds, making it easy to handle.
- Clear and precise markings for effortless angle reading.
Cons:
- May be too long for tight or confined working spaces.
- Black color might make markings harder to read in low light conditions.
The Angle Finder II stands out due to its robust anodized aluminum construction, ensuring resistance to wear and corrosion, which is essential for demanding workshop environments. Its ability to measure both inside and outside angles up to 180 degrees makes it versatile for various applications, from simple layout tasks to complex tube bending projects. The long 20-inch arm offers enhanced control and precision, enabling users to measure larger angles accurately without strain.
Designed with user convenience in mind, this protractor combines lightweight build with durable materials, allowing for effortless handling during extended use. The clear markings on the tool facilitate quick and accurate readings, reducing errors and improving efficiency in your work. Whether you are a professional fabricator or a hobbyist working on sheet metal projects, the Angle Finder II delivers reliable performance and precision that enhance your craftsmanship.
To buy this product, click here.
5. Mr. Pen Carpenter Square
The Mr. Pen Carpenter Square is ideal for professional carpenters, DIY enthusiasts, and woodworking hobbyists who require precise measurements and accurate right angles in their projects. If you often work on framing, cabinetry, or general construction tasks, this durable and reliable framing square will be a valuable addition to your toolkit.
Pros:
- Made from sturdy steel for long-lasting durability and resistance to wear.
- Compact size of 8 inch x 12 inch makes it easy to handle and store.
- Features a clear right angle ruler design, ensuring precise measurements and accurate cuts.
- Multi-functional as a carpenters square, framing tool, and L shape ruler.
- Black finish reduces glare and enhances readability of markings.
Cons:
- Dimensions may be too small for very large framing projects.
- The thin profile (0.039 inches) may feel less robust compared to thicker squares.
The Mr. Pen Carpenter Square offers excellent precision thanks to its well-defined markings and perfect right angle design. Its steel square construction provides the strength needed to withstand frequent use on job sites or workshops. The 8 by 12 inch size strikes a good balance between portability and functionality, allowing users to measure and mark wood or other materials with ease and confidence.
Additionally, the black color finish not only gives it a sleek look but also helps reduce glare, improving visibility during measurement tasks. This versatile tool can be used for framing, marking angles, or verifying square edges, making it a must-have for anyone serious about quality carpentry and woodworking. Overall, the Mr. Pen Framing Square is a practical and reliable tool designed to enhance accuracy and efficiency in any project.
To buy this product, click here.
6. Malco Radius Divider Tool
The Malco Radius Divider Tool is ideal for professionals and hobbyists involved in sheet metal fabrication who require precise and efficient layout marking. If you often work on projects that demand accurate circle and arc measurements up to 42 inches in diameter, this tool is perfect for you. It is especially useful for those seeking a reliable, adjustable, and durable scriber to enhance their metalworking precision.
Pros:
- Fast adjusting mechanism for quick layout measurements
- Resharpenable and replaceable points extend tool lifespan
- Capable of marking circles up to 42 inches in diameter
- Compact and lightweight design enhances portability
- High-quality construction by trusted brand Malco
Cons:
- May require occasional maintenance to keep points sharp
- Limited to sheet metal applications, not ideal for other materials
The Malco Radius Divider Tool features a fast-adjusting scriber mechanism that allows users to quickly set and mark precise radii, significantly reducing layout time on sheet metal projects. Its ability to measure circles up to 42 inches provides versatility for a wide range of fabrication tasks, from small components to larger curved surfaces. The tool’s resharpenable and replaceable points are a key feature, ensuring long-term usability without the need for frequent replacements.
Constructed with durability in mind, this tool is lightweight yet sturdy, making it easy to handle during extended use. The multi-color design also enhances visibility on the workbench. Overall, the Malco Radius Divider Tool offers a combination of precision, ease of use, and durability that benefits sheet metal fabricators looking to improve accuracy and efficiency in their layout work.
To buy this product, click here.
6. Accusize Industrial Tools Marking Black Precision Layout Solution
The Accusize Industrial Tools 5pc Marking Black Precision Layout Solution, 2805-1406 is ideal for professionals and hobbyists who require high accuracy in their marking and layout tasks. Whether you are a machinist, metalworker, or carpenter, this toolset provides the precision necessary for detailed and reliable work.
Pros:
- High-precision layout tools for accurate measurements
- Durable black finish for long-lasting use
- Compact dimensions for easy handling and storage
- Versatile set suitable for various industrial applications
- Manufactured by reputable brand Accusize Industrial Tools
Cons:
- May require some experience to fully utilize precision features
- Limited color options with only black available
The Accusize 5pc Marking Precision Layout Solution features a carefully designed set that enhances your ability to mark and measure with exactness. The tools are crafted with durable materials and finished in a sleek black color, which not only provides a professional appearance but also resists wear and corrosion over time. Its compact size, measuring approximately 1.38 inches in height, 10.63 inches in width, and 13.78 inches in length, makes it easy to maneuver and store in any workshop.
Users benefit from the precision engineering of each tool in the set, allowing for consistent and repeatable layouts. This accuracy ensures that your projects meet strict specifications, reducing errors and material waste. Furthermore, the set’s versatility supports a wide range of industrial tasks, making it a valuable addition to any professional’s toolkit.
To buy this product, click here.
7. Pagow Pocket Scriber Tool
The PAGOW 70A Pocket Scriber Tool is ideal for professionals and DIY enthusiasts who require precision in marking materials such as glass, ceramics, and metal sheets. If you work in welding, metalworking, or crafting and need a reliable, durable marking pen, this tool is designed to meet your needs with its fine carbide steel point and ergonomic design.
Pros:
- Features a durable carbide steel point for precise and long-lasting marking on various surfaces.
- Compact and lightweight design (0.04 pounds) makes it easy to carry and use for extended periods.
- Nickel finish enhances durability and provides a professional look.
- Ergonomic handle with a 3/8″ diameter offers comfortable grip and control during use.
- Ideal for marking on glass, ceramics, and metal sheets, making it versatile for multiple applications.
Cons:
- Point length of 2-7/8″ might be too long for very fine or delicate marking tasks.
- Not suitable for marking on soft or porous materials where the carbide tip may not be effective.
The PAGOW 70A Pocket Scriber Tool stands out with its robust carbide steel tip, which ensures accuracy and longevity when marking on tough surfaces like metal and glass. Its compact size and lightweight construction make it an excellent choice for professionals who need to carry their tools conveniently without sacrificing performance. The nickel finish not only adds to the tool’s aesthetic appeal but also protects it from corrosion, ensuring durability over time.
Additionally, the ergonomic handle design, with a diameter of 3/8″, offers enhanced grip and control, reducing hand fatigue during prolonged use. This combination of features makes the PAGOW 70A a versatile and reliable tool for welding marking and other precision tasks. Whether you’re a welder, metalworker, or hobbyist, this scriber tool provides the efficiency and accuracy required for high-quality results.
To buy this product, click here.
Frequently Asked Questions
What Is The Best Metal Layout Tool For Precise Marking?
The WEN ME251R Aluminum Offset Marking Gauge offers precise marking. It features a laser-etched scale for accuracy on metal and wood surfaces.
How Does The Malco Radius Divider Improve Metal Layout?
Malco Radius Divider allows fast adjustment and accurate circle marking. It suits sheet metal fabrication and offers resharpenable and replaceable points.
Which Tool Is Ideal For Angle Measurements In Metalwork?
The General Tools Angle Protractor #17 measures inside and outside angles. Its anodized aluminum build ensures durability and precise tube or sheet metal bending.
Why Choose The Ofasixx Tungsten Carbide Scriber Set?
Ofasixx scribers need no sharpening and provide quick, accurate marks. Magnetic design aids handling, perfect for metal, leather, glass, and wood layouts.
What Makes Mr. Pen Carpenter Square Essential For Woodworkers?
Mr. Pen Carpenter Square ensures precise right angles for framing and woodworking. Its sturdy metal design offers durability and reliable measurements.
Can The Pagow Pocket Scriber Handle Multiple Materials?
Yes, the PAGOW Pocket Scriber features a carbide steel point. It marks metal, glass, ceramics, and welding surfaces with ease and precision.
Conclusion
Choosing the right metal layout tools makes a big difference in fabrication work. Tools like the WEN ME251R and Angle Finder II help measure and mark metal with ease and accuracy. Using reliable scribers such as the Ofasixx set or PAGOW pocket scribe ensures clear, precise lines without constant sharpening.
Squares like the Mr. Pen Carpenter Square provide strong support for making right-angle measurements. For complex shapes, the Malco Radius Divider Tool offers quick adjustments and smooth operation. These tools save time and reduce errors on the shop floor. Whether you are a beginner or experienced fabricator, having the right layout tools improves your project quality.
Invest in tools that are sturdy, simple to use, and fit your specific needs. Good layout tools are the foundation of successful metal fabrication, helping you work smarter and with greater confidence.
